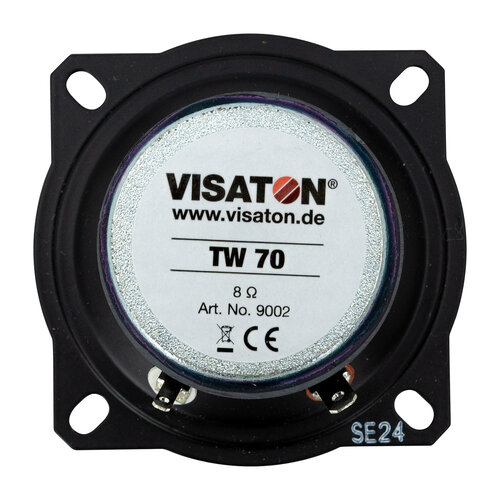

Visaton TW 70 Replacement Cone Tweeter
€14.75
55 mm (2.2”) Cone tweeter with special basket for the high-frequency range above 5,000 Hz.
Available on backorder
Description
Highlights
- Balanced response for easy system integration
- Great replacement driver
- Sealed rear
Product details
Visaton TW 70 2.5″ Cone Tweeter 8 Ohm
This tweeter has a balanced frequency response with brilliant treble and high power handling. Due to the sealed rear no separate high-frequency range housing construction necessary. Especially suitable as replacement unit for many HiFi speakers.
Visaton article code: 9002
Specifications
| Article number | TW 70 |
| EAN | 4007540090023 |
| Tweeter Type | Cone |
| Tweeter Series | TW Series |
| Cone / Dome Diameter | 64 mm | 2.5" |
| Power Handling (RMS) | 80 Watts |
| Power Handling (max) | 100 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 90 dB |
| Frequency Response | 800 – 20,000 Hz |
| Resonant Frequency (Fs) | 1500 Hz |
| DC Resistance (Re) | 7 ohms |
| Voice Coil Inductance (Le) | 0.16 mH |
| Mechanical Q (Qms) | 1.26 |
| Electromagnetic Q (Qes) | 4.21 |
| Total Q (Qts) | 0.97 |
| Overall Outside Diameter | 70 mm |
| Cutout Diameter | 64 mm |
| Depth | 29.7 mm |
| Recommended cut frequency | 5,000 Hz |
| Article number | TW 70 |
| EAN | 4007540090023 |
Additional information
| Tweeter Type | Cone |
|---|---|
| Tweeter Series | TW Series |
| Cone / Dome Diameter | 64 mm | 2.5″ |
| Power Handling (RMS) | 80 Watts |
| Power Handling (max) | 100 watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 90 dB |
| Frequency response | 800 – 20,000 Hz |
| Resonant Frequency (Fs) | 1500 Hz |
| DC Resistance (Re) | 7 ohms |
| Voice Coil Inductance (Le) | 0.16 mH |
| Mechanical Q (Qms) | 1.26 |
| Electromagnetic Q (Qes) | 4.21 |
| Total Q (Qts) | 0.97 |
| Overall Outside Diameter | 70 mm |
| Cutout Diameter | 64 mm |
| Depth | 29.7 mm |
| Recommended cut frequency | 5,000 Hz |
