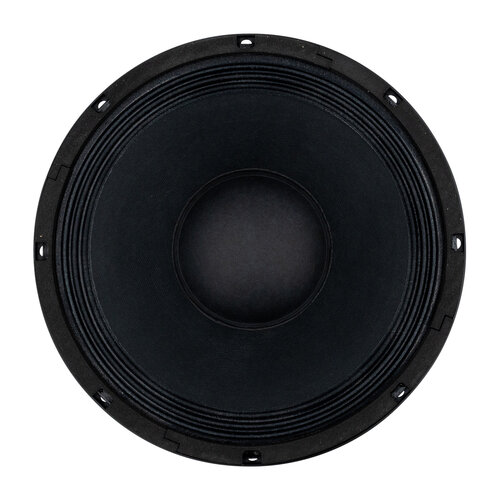

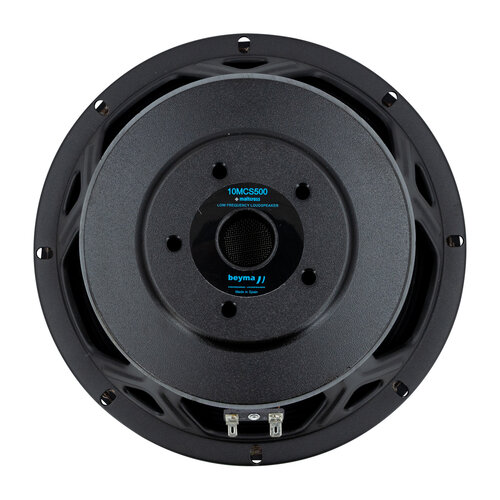

Beyma 10MCS500 Bass-midwoofer
€164.95
The Beyma 10MCS500 is a powerful 10” low and mid-frequency transducer featuring a pressed steel frame, high efficiency, and weatherproof durability. Tailored for compact professional systems, it offers strong performance across a wide frequency range.
2 in stock
Highlights of the Beyma 10MCS500
- 500 W AES / 1,000 W program power with 96.5 dB sensitivity
- 2.5” copper voice coil with Malt Cross® Cooling System
- Pressed steel frame with FEA-optimized magnetic circuit
- ±8 mm Xmax and weather-treated cone for rugged performance
Product details Beyma 10MCS500
Beyma 10MCS500 Low & Mid Frequency Transducer
The Beyma 10MCS500 is a 10-inch transducer built for low and mid-frequency applications in professional PA systems and line arrays. With a 500 W AES and 1,000 W program power rating, it delivers high efficiency and reliability while maintaining a sensitivity of 96.5 dB (1W/1m). Operating across a wide 70 Hz to 5,000 Hz range, it is well-suited for compact 2- or 3-way designs. The 2.5” copper voice coil, cooled by Beyma’s patented Malt Cross® system, ensures minimal power compression and thermal stability during prolonged use. Its magnetic circuit, optimized with FEA techniques, incorporates an aluminum demodulating ring to reduce distortion and enhance clarity. Engineered with a rugged pressed steel frame and a dual-side weather-treated cone, the 10MCS500 supports extended controlled excursion of ±8 mm and a 40 mm peak-to-peak mechanical limit. At just 125 mm depth and 5.7 kg weight, it integrates easily into compact enclosures, making it an ideal choice for portable PA systems and fixed installations requiring durability and fidelity.
Specifications
| Article number | 10MCS500 |
| EAN | 8435469042568 |
| Woofer Type | Low and Mid Frequency Transducer |
| Nominal Diameter | 10" |
| Power Handling (RMS) | 500 Watts |
| Continuous Program Power | 1000 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 96.5 dB |
| Frequency Response | 70-5.000 Hz |
| Voice Coil Diameter | 2.5" |
| DC Resistance (Re) | 5.6 Ω |
| Voice Coil Inductance (Le) | 1.1 mH |
| Resonant Frequency (Fs) | 65 Hz |
| Mechanical Q (Qms) | 10.1 |
| Electromagnetic Q (Qes) | 0.33 |
| Total Q (Qts) | 0.31 |
| Diaphragm Mass Inc. Airload (Mms) | 0,044 kg |
| Mechanical Compliance of Suspension (Cms) | 136 µm / N |
| Surface Area of Cone (Sd) | 0,035 m² |
| Volume of Displacement (Vd) | 280 cm³ |
| BL Product (BL) | 17,6 N/A |
| Compliance Equivalent Volume (Vas) | 24 Liters |
| Maximum Linear Excursion (Xmax) | 8 mm |
| Driver's Mechanical Losses (Rms) | 1,8 kg / s |
| Voice Coil Wire Material | Copper |
| Basket / Frame Material | Steel |
| Overall Outside Diameter | 258 mm |
| Overall Depth | 125 mm |
| Baffle Cutout Diameter | 230 mm |
| Bolt Circle Diameter | 241 mm |
| # Mounting Holes | 8 |
| Mounting Hole Diameter | 6.5 mm |
| plus | Weatherproof cone with treatment for both sides of the cone |
| Article number | 10MCS500 |
| EAN | 8435469042568 |
| Woofer Type | Low and Mid Frequency Transducer |
|---|---|
| Nominal Diameter | 10″ |
| Power Handling (RMS) | 500 Watts |
| Continuous Program Power | 1000 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 96.5 dB |
| Frequency response | 70-5.000 Hz |
| Voice Coil Diameter | 2.5″ |
| DC Resistance (Re) | 5.6 Ω |
| Voice Coil Inductance (Le) | 1.1 mH |
| Resonant Frequency (Fs) | 65 Hz |
| Mechanical Q (Qms) | 10.1 |
| Electromagnetic Q (Qes) | 0.33 |
| Total Q (Qts) | 0.31 |
| Diaphragm Mass Inc. Airload (Mms) | 0,044 kg |
| Mechanical Compliance of Suspension (Cms) | 136 µm / N |
| Surface Area of Cone (Sd) | 0,035 m² |
| Volume of Displacement (Vd) | 280 cm³ |
| BL Product (BL) | 17,6 N/A |
| Compliance Equivalent Volume (Vas) | 24 liters |
| Maximum Linear Excursion (Xmax) | 8 mm |
| Driver's Mechanical Losses (Rms) | 1,8 kg / s |
| Voice Coil Wire Material | Copper |
| Basket / Frame Material | Steel |
| Overall Outside Diameter | 258 mm |
| Overall Depth | 125 mm |
| Baffle Cutout Diameter | 230 mm |
| Bolt Circle Diameter | 241 mm |
| # Mounting Holes | 8 |
| Mounting Hole Diameter | 6.5 mm |
