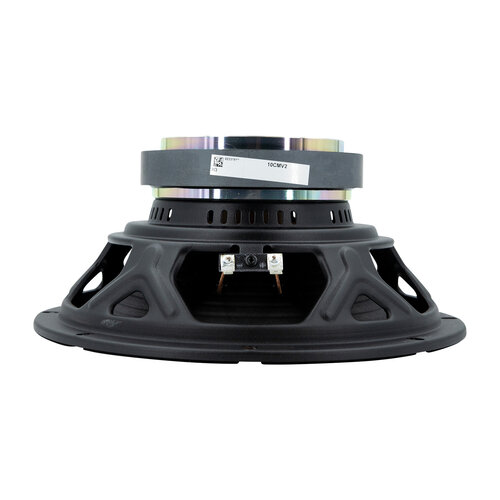

Beyma 10CMV2 Bass-midwoofer 8 Ohm
€62.95
The Beyma 10CMV2 is a 10” low/mid-frequency transducer designed for compact vented cabinets. With a treated cloth surround, pressed steel frame, and ferrite magnet, it offers efficient, linear response with low distortion for bass and midbass applications.
14 in stock
Highlights of the Beyma 10CMV2
- 250 W AES / 500 W program power with 95 dB sensitivity
- 1.5” copper wire voice coil and ferrite magnet motor
- Optimized for bass-reflex enclosures (30 L tuned to 54 Hz)
- ±6.5 mm Xmax and 30 mm peak-to-peak excursion for extended range
Product details Beyma 10CMV2
Beyma 10CMV2 Low & Mid Frequency Transducer
The Beyma 10CMV2 is a compact 10-inch transducer optimized for low and mid-frequency performance in space-conscious bass-reflex systems. Designed to handle 250 W AES and 500 W program power, it offers a sensitivity of 95 dB (1W/1m) and a frequency range from 60 Hz to 5,000 Hz. Equipped with a 1.5” copper wire voice coil and ferrite magnet, the 10CMV2 delivers extended linear response with minimal distortion. Its optimized pressed steel frame and double roll treated cloth surround contribute to both acoustic performance and mechanical durability. The driver supports a maximum linear excursion of ±6.5 mm, with a peak-to-peak damage limit of 30 mm. Recommended for use in 30-liter vented enclosures tuned at 54 Hz, the 10CMV2 weighs just 3.1 kg and is 115 mm deep, making it ideal for compact PA enclosures, portable sound systems, and high-fidelity DIY speaker projects.
Specifications
| Article number | 10CMV2 |
| EAN | 8435469051027 |
| Woofer Type | Low and Mid Frequency Transducer |
| Nominal Diameter | 10" |
| Power Handling (RMS) | 250 Watts |
| Continuous Program Power | 500 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 95 dB |
| Frequency Response | 60-5.000 Hz |
| Voice Coil Diameter | 1.5" |
| DC Resistance (Re) | 5.9 Ω |
| Voice Coil Inductance (Le) | 0.8 mH |
| Resonant Frequency (Fs) | 52 Hz |
| Mechanical Q (Qms) | 3.8 |
| Electromagnetic Q (Qes) | 0.47 |
| Total Q (Qts) | 0.42 |
| Diaphragm Mass Inc. Airload (Mms) | 0,042 kg |
| Mechanical Compliance of Suspension (Cms) | 216 µm / N |
| Surface Area of Cone (Sd) | 0,038 m² |
| Volume of Displacement (Vd) | 247 cm³ |
| BL Product (BL) | 13,4 N/A |
| Compliance Equivalent Volume (Vas) | 44 Liters |
| Maximum Linear Excursion (Xmax) | 6.5 mm |
| Driver's Mechanical Losses (Rms) | 3,7 kg / s |
| Voice Coil Former | Copper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 258 mm |
| Overall Depth | 115 mm |
| Baffle Cutout Diameter | 230 mm |
| Bolt Circle Diameter | 241 mm |
| # Mounting Holes | 8 |
| Mounting Hole Diameter | 6.5 mm |
| plus | Designed for bass and midbass applications in small vented cabinets |
| Article number | 10CMV2 |
| EAN | 8435469051027 |
| Woofer Type | Low and Mid Frequency Transducer |
|---|---|
| Nominal Diameter | 10″ |
| Power Handling (RMS) | 250 Watts |
| Continuous Program Power | 500 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 95 dB |
| Frequency response | 60-5.000 Hz |
| Voice Coil Diameter | 1.5″ |
| DC Resistance (Re) | 5.9 Ω |
| Voice Coil Inductance (Le) | 0.8 mH |
| Resonant Frequency (Fs) | 52 Hz |
| Mechanical Q (Qms) | 3.8 |
| Electromagnetic Q (Qes) | 0.47 |
| Total Q (Qts) | 0.42 |
| Diaphragm Mass Inc. Airload (Mms) | 0,042 kg |
| Mechanical Compliance of Suspension (Cms) | 216 µm / N |
| Surface Area of Cone (Sd) | 0,038 m² |
| Volume of Displacement (Vd) | 247 cm³ |
| BL Product (BL) | 13,4 N/A |
| Compliance Equivalent Volume (Vas) | 44 Liters |
| Maximum Linear Excursion (Xmax) | 6.5 mm |
| Driver's Mechanical Losses (Rms) | 3,7 kg / s |
| Voice Coil Former | Copper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 258 mm |
| Overall Depth | 115 mm |
| Baffle Cutout Diameter | 230 mm |
| Bolt Circle Diameter | 241 mm |
| # Mounting Holes | 8 |
| Mounting Hole Diameter | 6.5 mm |
