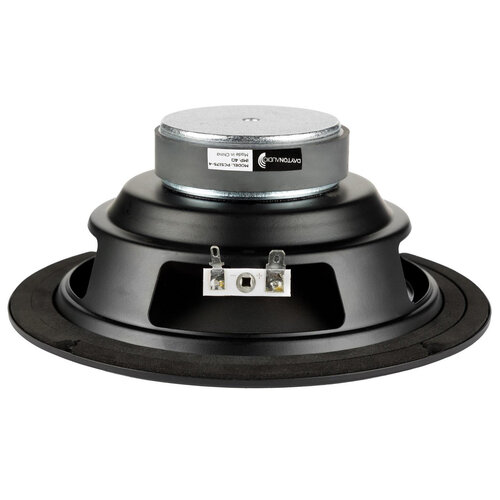

Dayton Audio PCS175-4 Poly Cone Woofer 6-1/2″ 4 Ohm
€19.95
The Dayton Audio PCS175-4 is a 6-1/2 inch poly cone woofer designed for reliable, high-fidelity performance in a range of speaker applications. With its damped poly cone, rubber surround, and robust ferrite magnet structure, this 4-ohm woofer delivers a smooth frequency response and extended service life. Ideal for both new speaker builds and repairs, the PCS175-4 combines efficient output with long-lasting durability, making it a versatile choice for audio enthusiasts and DIY speaker builders.
20 in stock
Highlights of the Dayton Audio PCS175-4
- Damped poly cone with rubber surround ensures smooth sound and long-term reliability
- Aluminum former with 4-layer voice coil for enhanced power handling and thermal performance
- High sensitivity of 89.2 dB for impressive output even with modest amplifier power
- Low-profile stamped steel frame ideal for surface-mounted installations and compact designs
Product details Dayton Audio PCS175-4
Dayton Audio PCS175-4 6-1/2″ Poly Cone Woofer 4 Ohm
Engineered for precision and durability, the PCS175-4 woofer features a damped poly cone paired with a rubber surround, which together provide a controlled yet extended frequency response from 50 Hz up to 5,000 Hz. The use of a poly cone reduces unwanted resonances, while the rubber surround enhances the driver’s longevity. This construction ensures that the woofer delivers a smooth and natural sound, making it a solid choice for both speakers and custom audio projects.
At the heart of the PCS175-4 is an aluminum former with a 4-layer voice coil, allowing for improved power handling and thermal management. This design supports a continuous RMS power handling of 30 watts, making it suitable for integration with a wide range of amplifiers and audio systems. The ferrite magnet motor structure ensures stable, reliable performance throughout the woofer’s operating range, minimizing distortion even at higher volumes.
The low-profile stamped steel frame not only adds to the structural integrity of the woofer but also makes it exceptionally easy to install, especially in surface-mounted or shallow enclosure designs. With a sensitivity of 89.2 dB at 2.83V/1m, the PCS175-4 delivers impressive output and efficiency, making it suitable for use in both home audio and DIY speaker kit applications where space and power efficiency are important.
Whether used as a replacement driver or in new custom builds, the Dayton Audio PCS175-4 stands out for its blend of performance and versatility. Its frequency response and controlled excursion make it an excellent choice for midbass duties in two-way or three-way systems. The woofer is also compatible with a wide array of woofers and crossover components, offering flexibility for DIYers and professionals alike looking to optimize their audio setups.
The PCS175-4 is a direct replacement woofer for the Dayton Audio B65 and B65A bookshelf speakers, offering a simple solution for B65 speaker repair and restoring the original midbass performance.
Compatibility:
Specifications
| Article number | PCS175-4 |
| EAN | 0848791012143 |
| Woofer Series | Dayton Audio PCS series |
| Woofer Type | Woofer |
| Nominal Diameter | 6.5 " | 170 mm |
| Power Handling (RMS) | 30 Watts |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 89.2 dB |
| Voice Coil Diameter | 25 mm |
| DC Resistance (Re) | 3.7 Ω |
| Voice Coil Inductance (Le) | 0.80 mH |
| Resonant Frequency (Fs) | 56 Hz |
| Mechanical Q (Qms) | 2.85 |
| Electromagnetic Q (Qes) | 0.98 |
| Total Q (Qts) | 0.73 |
| Diaphragm Mass Inc. Airload (Mms) | 17.2 g |
| Mechanical Compliance of Suspension (Cms) | 0.47 mm/N |
| Surface Area of Cone (Sd) | 143 cm² |
| BL Product (BL) | 4.78 Tm |
| Compliance Equivalent Volume (Vas) | 13.7 L |
| Maximum Linear Excursion (Xmax) | 2.0 mm |
| Cone / Diaphragm Material | Polypropylene |
| Surround Material | Rubber |
| Voice Coil Former | Aluminium |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 177.3 mm |
| Baffle Cutout Diameter | 145 mm |
| Bolt Circle Diameter | 168 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 4.6 mm |
| plus | Correct drop-in driver for Dayton Audio B65 and B65A bookshelf speakers |
