ETON 28 SD 1 Dome Tweeter
€139.95
28mm Silk dome tweeter, hand coated Silk diaphragm, rich and warm sound impression, authentical staging, uncolorled sound reproduction.
4 in stock
Description
Highlights
- Rich and warm sound
- Uncolorled sound reproduction
- Frequency range: 2000 – 22000 Hz
- Internationally renowed design
Product details

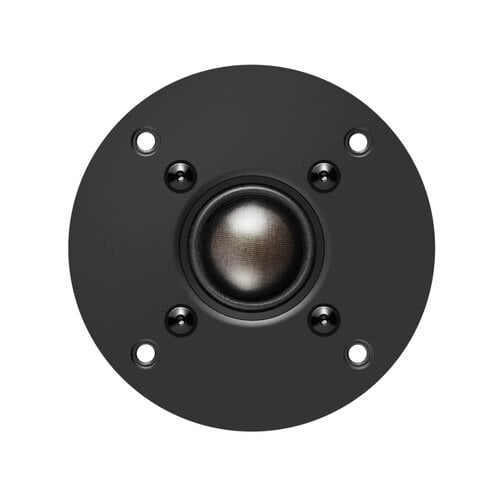

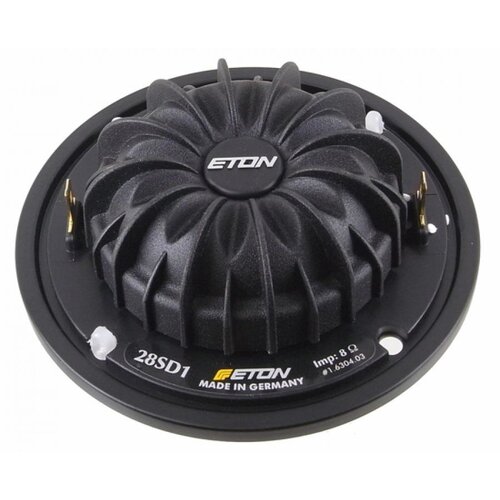

ETON 28 SD 1 Dome Tweeter
The highly absorbing, internally developed coating of the fabric dome is applied manually. This procedure guarantees neutral sound features, which are reflected in a fine, voluminous and warm sound. The great additionally coupled volume causes low resonance frequencies and therefore an improved connection to the midrange. The specially ventilated coil and the magnet geometry are aligned to a very high degree of impulse fidelity and vibration behaviour.
The SD Tweeter Series, a re-developed classic.
Specifications
| Article number | 28 SD 1 |
| EAN | 8785256846535 |
| Tweeter Type | Dome |
| Tweeter Series | SD |
| Cone / Dome Diameter | 28mm |
| Power Handling (RMS) | 120 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 91 dB |
| Frequency Response | 2000 – 22000 Hz |
| Resonant Frequency (Fs) | 510 Hz |
| DC Resistance (Re) | 6.7 Ω |
| Voice Coil Inductance (Le) | 0.02 mH |
| Article number | 28 SD 1 |
| EAN | 8785256846535 |
Additional information
| Tweeter Type | Dome |
|---|---|
| Tweeter Series | SD |
| Cone / Dome Diameter | 28mm |
| Power Handling (RMS) | 120 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 91 dB |
| Frequency response | 2000 – 22000 Hz |
| Resonant Frequency (Fs) | 510 Hz |
| DC Resistance (Re) | 6.7 Ω |
| Voice Coil Inductance (Le) | 0.02 mH |
