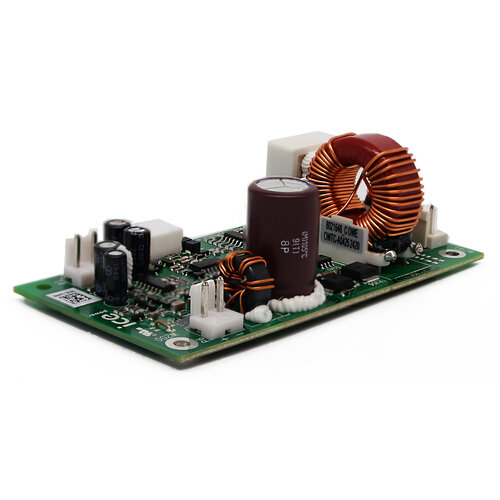

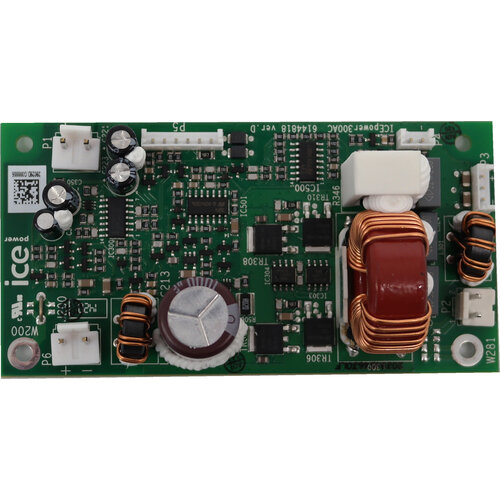

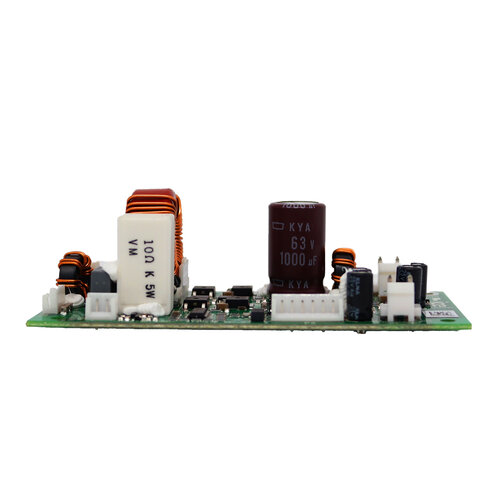

ICEpower 300A1 Amplifier Module
€93.45
ICEpower 300AS1 | Amplifier Module
26 in stock
Description
Highlights
- Adds an extra 300-watt channel to your 300AS1 or 700AS1/2 modules
- Great output power, without the need for heatsinks
- Over-current, short circuit and thermal protection
- DC servo for low DC offset
- Minimum load of 2.7 Ω
- ICEpower’s patented HCOM modulation and control techniques
Product details
The 300A1 is the 300-watt amplifier section from the 300AS1 amplifier and power supply module. This unit is compact, powerful and offers great audio quality thanks to ICEpower’s patented HCOM techniques. A unique amplifier module, as this unit is specifically designed to receive its power supply from the DC hanger bus of the 300AS1, 700AS1 and 700AS2 modules. This makes a great way to create your own two- or three-way amplifier in an easy and modular approach.
Looking for more channels? The 300A2 is the two-channel version.
Specifications
| Article number | 300A1 |
| EAN | 8785256843985 |
| Rated power output | 1x 300 watts at 4 ohms <br> 1x 150 watts at 8 ohms |
| Minimum load | 2.5 Ohm |
| Efficiency | 90% |
| Distortion | 0.006 % THD+N |
| Gain | 28 dB |
| Input impedance | 47 kOhm |
| Amplifier Classification | Class D |
| Speaker output channels | 1 |
| Current limit | 20 A |
| Mounting hole diameter | 3.5 mm |
| Article number | 300A1 |
| EAN | 8785256843985 |
Additional information
| Rated power output | 1x 300 watts at 4 ohms 1x 150 watts at 8 ohms |
|---|---|
| Minimum load | 2.5 Ohm |
| Efficiency | 90% |
| Distortion | 0.006 % THD+N |
| Gain | 28 dB |
| Input impedance | 47 Kohm |
| Amplifier classification | Class-D |
| Speaker output channels | 1 |
| Current limit | 20 A |
| Mounting Hole Diameter | 3.5 mm |
