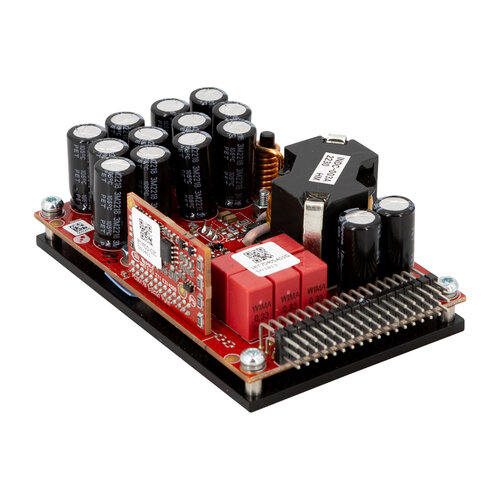

PURIFI 1ET7040SA Amplifier Module
€449.95
Audiophiles seeking exceptional sound in a single, powerful module should look no further than the PURIFI 1ET7040SA amplifier module. This single-channel powerhouse boasts impressive specifications, making it a top choice for high-fidelity audio systems. At its core lies a Class D amplifier design, known for efficiency and minimal heat generation. However, unlike traditional Class D amps, the 1ET7040SA delivers unmatched audio quality with incredibly low distortion and a wide dynamic range.
1 in stock
Highlights of the PURIFI 1ET7040SA Amplifier Module
- Exceptional Audio Quality: Class D design with low distortion and wide dynamic range for unmatched sound clarity.
- High Power Output: Delivers 500 watts into 4 ohms (peak 950 watts into 2 ohms) for powerful, clear sound even with demanding speakers.
- High Output Current (40A): Handles fluctuations in speaker impedance with ease, ensuring consistent performance.
- Modular Design: Requires additional components (power supply, front-end board, chassis) for use in a complete audio system (important for DIY enthusiasts and audio equipment manufacturers).
Product details PURIFI 1ET7040SA Amplifier Module
The 1ET7040SA’s true strength lies in its power output. It can deliver a staggering 500 watts into 4 ohms with minimal distortion, reaching a peak of 950 watts into 2 ohms. This ensures crystal-clear sound even when driving demanding speakers or playing dynamic music with powerful bass. Additionally, the module features a high output current of 40A, allowing it to handle significant fluctuations in speaker impedance with ease.
While the 1ET7040SA is a powerful audio engine, it’s important to note it’s designed for DIY enthusiasts or audio equipment manufacturers. The module itself requires additional components like a power supply, front-end board, and chassis to function in a complete audio system. However, for those seeking unparalleled sound quality and raw power in a modular format, the PURIFI 1ET7040SA amplifier module stands out as a top contender.
Specifications
| Article number | 1ET7040SA |
| EAN | 8785256861750 |
| Rated power output | 500 Watt at 4-ohms to 950W into 2-ohms |
| Minimum load | 4 Ω |
| Efficiency | >94% |
| Signal-to-noise ratio (SNR) | 129 dB |
| Gain | 12.8 dB |
| Amplifier Classification | D |
| Power Requirements | ±25V to ±65V DC |
| Dimensions (L x W x H) | 95 x 195 x 36 mm |
| Article number | 1ET7040SA |
| EAN | 8785256861750 |
| Rated power output | 500 Watt at 4-ohms to 950W into 2-ohms |
|---|---|
| Minimum load | 4 Ω |
| Efficiency | >94% |
| Signal-to-noise ratio (SNR) | 129 dB |
| Gain | 12.8 dB |
| Amplifier classification | Class-D |
| Power Requirements | ±25V to ±65V DC |
| Dimensions (L x W x H) | 95 x 195 x 36 mm |
