Monacor DT-300 Dome Tweeter
€39.95
A larger tweeter, ideal for a larger two-way (PA) build thanks to its robust building properties.
14 in stock
Description
Highlights
- Silk dome
- High power handling
- High efficiency
- Low resonant frequency
Product details

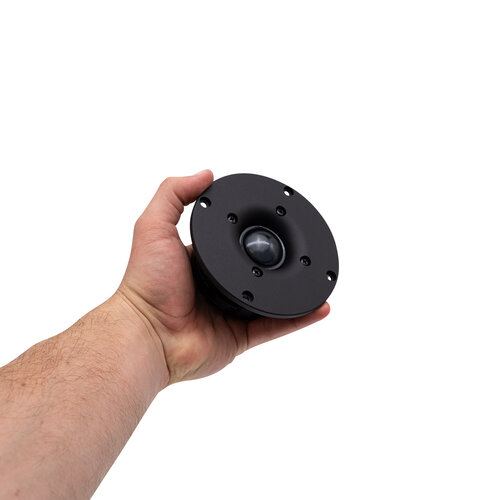

Monacor DT-300 1-1/8” Soft Dome Tweeter
The DT-300 has a large cone area for an exceptionally high dynamic power, also with low crossover frequencies. The motor structure is cooled by ferrofluid of high liquidity for a fine brilliance. Due to the robust build of the tweeter and its high efficiency it has a very wide application range but it is ideally suited for larger two-way applications even with PA woofers.
Specifications
| Article number | DT-300 |
| EAN | 4007754146493 |
| Tweeter Type | Soft dome |
| Cone / Dome Diameter | 25 mm | 1" |
| Power Handling (RMS) | 50 Watts |
| Power Handling (max) | 100 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 93 dB |
| Frequency Response | 2,000-19,000 Hz |
| Resonant Frequency (Fs) | 750 Hz |
| Overall Outside Diameter | 116 mm |
| Cutout Diameter | 90 mm |
| Depth | 52 mm |
| Recommended cut frequency | 2,000 Hz (12 dB/oct.) |
| Article number | DT-300 |
| EAN | 4007754146493 |
Additional information
| Tweeter Type | Soft Dome |
|---|---|
| Cone / Dome Diameter | 25 mm | 1″ |
| Power Handling (RMS) | 50 Watts |
| Power Handling (max) | 100 watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 93 dB |
| Frequency response | 2,000-19,000 Hz |
| Resonant Frequency (Fs) | 750 Hz |
| Overall Outside Diameter | 116 mm |
| Cutout Diameter | 90 mm |
| Depth | 52 mm |
| Recommended cut frequency | 2,000 Hz (12 dB/oct.) |
