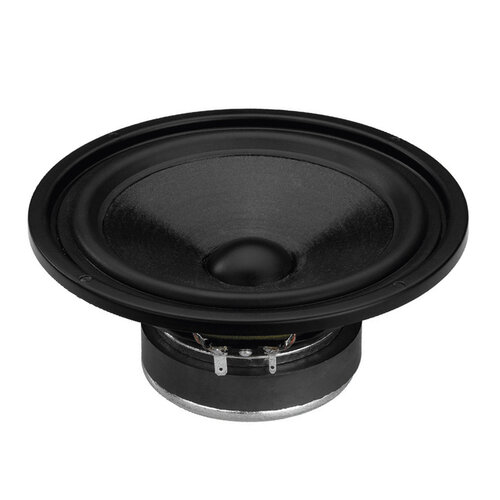

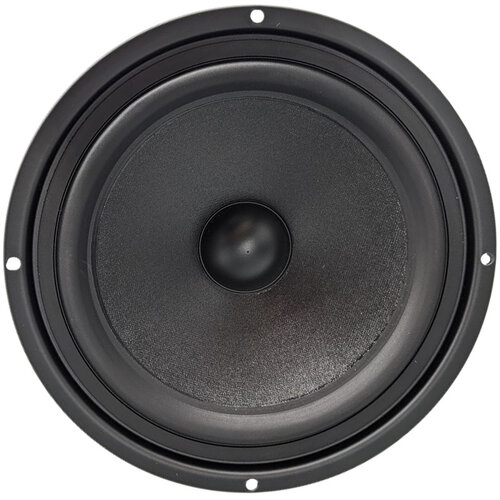

Monacor SPH-176 High-quality hi-fi bass-midrange speaker 6.75″
€74.95
Monacor presents the SPH-176, a mid-range woofer deally suited for various applications, from 2-way hi-fi speakers and attractive dual bass arrangements to very small subwoofers!
Available on backorder
Description
Product Details
Monacor SPH-176 High-quality hi-fi bass-midrange speaker 6.75″
The SPH-176 allows for setting u speaker systems of highest level stability with an amazingly deep bass production.
Specifications
| Article number | SPH-176 |
| EAN | 4007754165487 |
| Woofer Type | Bass-midrange |
| Nominal Diameter | 6.75" |
| Power Handling (RMS) | 70 Watts |
| Power Handling (max) | 120 Watts |
| Sensitivity (SPL at 1m / 2.83V) | 90 dB |
| Frequency Response | f3-4,500 Hz |
| Voice Coil Diameter | 25 mm |
| Magnet Weight | 450 g |
| DC Resistance (Re) | 6.6 ohms |
| Voice Coil Inductance (Le) | 0.75 mH |
| Resonant Frequency (Fs) | 39 Hz |
| Mechanical Q (Qms) | 2.27 |
| Electromagnetic Q (Qes) | 0.44 |
| Total Q (Qts) | 0.37 |
| Diaphragm Mass Inc. Airload (Mms) | 14 g |
| Mechanical Compliance of Suspension (Cms) | 1.01 mm/N |
| Surface Area of Cone (Sd) | 140 cm2 |
| BL Product (BL) | 7.70 Tm |
| Compliance Equivalent Volume (Vas) | 27 l |
| Maximum Linear Excursion (Xmax) | 5.5 mm |
| Voice Coil Former | Aluminium |
| Overall Outside Diameter | 175 mm |
| Overall Depth | 75 mm |
| Baffle Cutout Diameter | 144 mm |
| # Mounting Holes | 4 |
| Article number | SPH-176 |
| EAN | 4007754165487 |
Additional information
| Woofer Type | Bass-midrange |
|---|---|
| Nominal Diameter | 6.75″ |
| Power Handling (RMS) | 70 Watts |
| Power Handling (max) | 120 Watts |
| Sensitivity (SPL at 1m / 2.83V) | 90 dB |
| Frequency response | f3-4,500 Hz |
| Voice Coil Diameter | 25 mm |
| Magnet Weight | 450 g |
| DC Resistance (Re) | 6.6 Ohms |
| Voice Coil Inductance (Le) | 0.75 mH |
| Resonant Frequency (Fs) | 39 Hz |
| Mechanical Q (Qms) | 2.27 |
| Electromagnetic Q (Qes) | 0.44 |
| Total Q (Qts) | 0.37 |
| Diaphragm Mass Inc. Airload (Mms) | 14 g |
| Mechanical Compliance of Suspension (Cms) | 1.01 mm/N |
| Surface Area of Cone (Sd) | 140 cm² |
| BL Product (BL) | 7.70 Tm |
| Compliance Equivalent Volume (Vas) | 27 L |
| Maximum Linear Excursion (Xmax) | 5.5 mm |
| Voice Coil Former | Aluminium |
| Overall Outside Diameter | 175 mm |
| Overall Depth | 75 mm |
| Baffle Cutout Diameter | 144 mm |
| # Mounting Holes | 4 |
