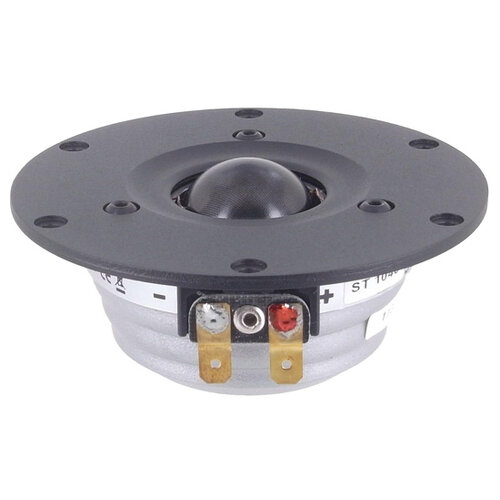

Morel Supreme ST 1048 Dome Tweeter Matched Pair
€699.95
Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters’ superior high performance.
2 in stock
Description
Highlights
- Sold in factory matched pairs
- 104 mm IDR™ Improved Dispersion Recess aluminum faceplate
- Flat neodymium motor structure provides maximum flux
- Hexatech™ voice coil for maximum BL product and power handling
- Acuflex™ coated dome with the perfect blend of internal damping and rigidity
- Precisely matched acoustic loading between the dome cavity and rear chamber
Product details
Morel Supreme ST 1048 1″ Dome Tweeter Matched Pair
Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters’ superior high performance. Their underhung voice coils move in a significantly higher magnetic field and remain there always during operation. As a result, the Morel Supreme tweeters provide more linear excursion, eliminate intermodulation distortion, reduce power compression at high levels, and considerably improve low frequency reproduction.
Specifications
| Article number | ST1048 |
| EAN | 0844632070792 |
| Tweeter Type | Soft Dome |
| Tweeter Series | Supreme Series |
| Cone / Dome Diameter | 25 mm | 1" |
| Power Handling (RMS) | 220 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 91.5 dB |
| Frequency Response | 1,400 to 22,000 Hz |
| Resonant Frequency (Fs) | 680 Hz |
| DC Resistance (Re) | 5.2 ohms |
| Mechanical Q (Qms) | 0.8 |
| Electromagnetic Q (Qes) | 0.65 |
| Total Q (Qts) | 0.36 |
| Overall Outside Diameter | 4.09" |
| Cutout Diameter | 2.95" |
| Depth | 1.57" |
| Article number | ST1048 |
| EAN | 0844632070792 |
Additional information
| Tweeter Type | Soft Dome |
|---|---|
| Tweeter Series | Supreme Series |
| Cone / Dome Diameter | 25 mm | 1″ |
| Power Handling (RMS) | 220 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 91.5 dB |
| Frequency response | 1,400 to 22,000 Hz |
| Resonant Frequency (Fs) | 680 Hz |
| DC Resistance (Re) | 5.2 ohms |
| Mechanical Q (Qms) | 0.8 |
| Electromagnetic Q (Qes) | 0.65 |
| Total Q (Qts) | 0.36 |
| Overall Outside Diameter | 4.09″ |
| Cutout Diameter | 2.95″ |
| Depth | 1.57″ |
