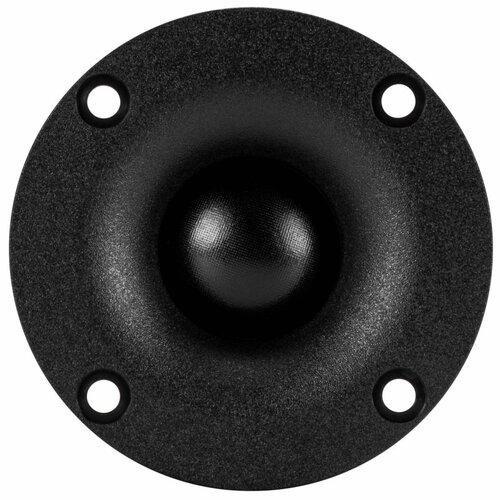

Peerless by Tymphany BC25SC08-04 Dome Tweeter With Waveguide
€29.95
Tymphany’s BC25SC08-04 4 ohm 1″ silk dome tweeter is surprisingly efficient for its size. With natural response up to 20,000 Hz it is a great choice where space is at a minimum.
Available on backorder
Description
Highlights of the Peerless BC25SC08-04 Dome Tweeter
- Sensitivity (SPL at 1m / 2.83V): 99.3 dB
- Resonant Frequency (Fs): 1600 Hz
- Powerful neodymium motor increases efficiency and control
- Ferrofluid and cooling fins on the motor assembly for increased power handling
Product details Peerless BC25SC08-04 Dome Tweeter
Peerless by Tymphany BC25SC08-04 1″ Silk Dome Tweeter with Waveguide
This BC family tweeter features a 4 ohm 25 mm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the NdFeB motor, providing enhanced cooling of the voice coil. The tweeter comes with a compact faceplate with recessed mounting holes. A finned heat sink has been added for improved power handling.
Specifications
| Article number | BC25SC08-04 |
| EAN | 0848864017129 |
| Tweeter Type | Soft Dome |
| Tweeter Series | BC Series |
| Cone / Dome Diameter | 25 mm | 1" |
| Power Handling (RMS) | 15 Watt |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 99.3 dB |
| Frequency Response | 2000 -15000 Hz |
| Resonant Frequency (Fs) | 1600 Hz |
| DC Resistance (Re) | 2.8 ohm |
| Voice Coil Inductance (Le) | 0.023 mH |
| Mechanical Q (Qms) | 4.91 |
| Electromagnetic Q (Qes) | 1.58 |
| Total Q (Qts) | 1.2 |
| Overall Outside Diameter | 70 mm |
| Cutout Diameter | 44 mm |
| Depth | 34.3 mm |
| Diaphragm Material | Silk |
| plus | Perfect replacement tweeter |
| min | Can be a bit to sibilant for some users |
| Article number | BC25SC08-04 |
| EAN | 0848864017129 |
Additional information
| Tweeter Type | Soft Dome |
|---|---|
| Tweeter Series | BC Series |
| Cone / Dome Diameter | 25 mm | 1″ |
| Power Handling (RMS) | 15 Watt |
| Impedance (Z) | 4 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 99.3 dB |
| Frequency response | 2000 -15000 Hz |
| Resonant Frequency (Fs) | 1600 Hz |
| DC Resistance (Re) | 2.8 Ohm |
| Voice Coil Inductance (Le) | 0.023 mH |
| Mechanical Q (Qms) | 4.91 |
| Electromagnetic Q (Qes) | 1.58 |
| Total Q (Qts) | 1.2 |
| Overall Outside Diameter | 70 mm |
| Cutout Diameter | 44 mm |
| Depth | 34.3 mm |
| Diaphragm Material | Silk |
