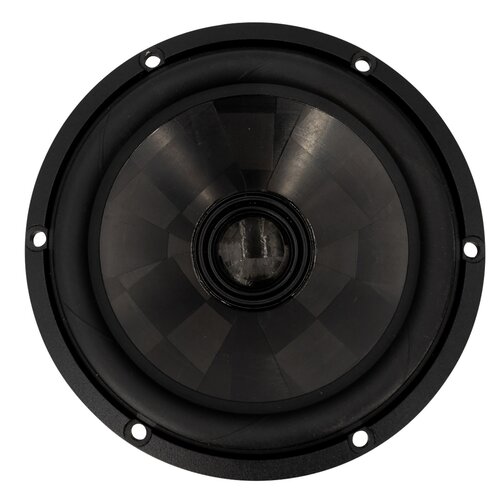

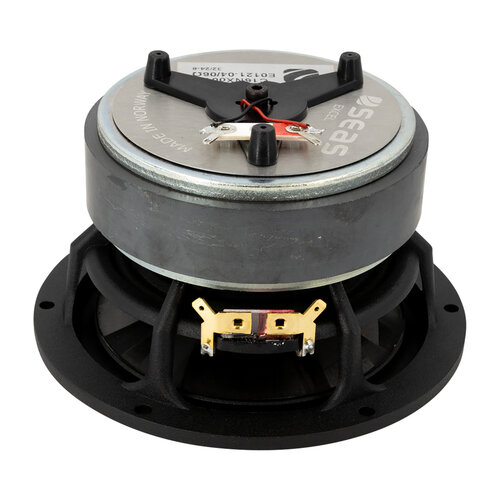

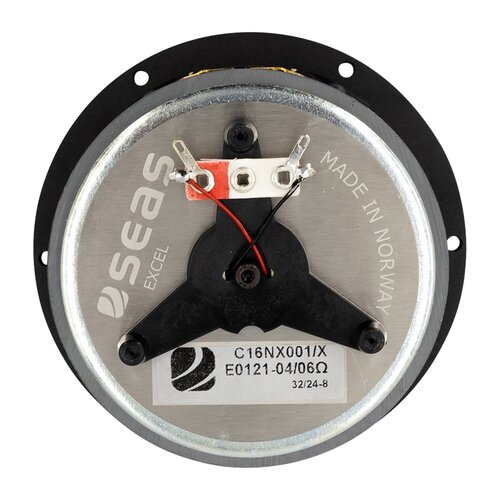

SEAS Excel C16NX001/X Coaxial Woofer
€649.95
The SEAS C16NX001/X is a premium 5-inch coaxial driver from SEAS, part of their Excel Graphene line. It is designed to offer high-end audio performance, making it a preferred choice for audiophiles and professional audio systems.
Available on backorder
Highlights of the SEAS C16NX001/X
- Graphene-treated magnesium cone for superior stiffness and damping
- 39 mm voice coil with optimized magnet system for linear performance
- 26 mm textile dome tweeter integrated for coaxial design
- Wide frequency response and excellent midrange clarity
Product details SEAS C16NX001/X
SEAS C16NX001/X Excel Coaxial Woofer
The SEAS Excel C16NX001/X is a high-performance coaxial driver that features a Graphene-treated magnesium cone. This design ensures excellent stiffness while minimizing unwanted resonances, making it ideal for accurate bass and midrange reproduction. The integrated 26 mm textile dome tweeter allows for smooth high-frequency extension, providing a balanced and cohesive sound.
With its 39 mm voice coil and FEA-optimized magnet system, the C16NX001/X delivers impressive linearity and low distortion. It is suitable for high-end two-way speaker systems, where sound quality and precision are paramount. Its compact size and robust build make it versatile for various applications, from nearfield studio monitors to premium home audio setups.
Specifications
| Article number | C16NX001/X |
| EAN | 9504193884252 |
| Woofer Series | SEAS Excel series |
| Woofer Type | Coaxial woofer |
| Nominal Diameter | 5" |
| Power Handling (RMS) | 100 Watts |
| Power Handling (max) | Woofer 250 Watts, Tweeter 200 Watts (short term) |
| Impedance (Z) | Woofer 4 Ω, Tweeter 6 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 89 dB |
| Frequency Response | Woofer 20 – 4.000 Hz, Tweeter 2.000 – 30.000 Hz |
| Voice Coil Diameter | Woofer 39 mm, Tweeter 26 mm |
| DC Resistance (Re) | Woofer 3.1 Ω, Tweeter 4.7 Ω |
| Voice Coil Inductance (Le) | Woofer 0.16 mH, Tweeter 0.02 mH |
| Resonant Frequency (Fs) | 38 Hz |
| Mechanical Q (Qms) | 4.95 |
| Electromagnetic Q (Qes) | 0.30 |
| Total Q (Qts) | 0.29 |
| Diaphragm Mass Inc. Airload (Mms) | Woofer 12.4 g, Tweeter 0.3 g |
| Surface Area of Cone (Sd) | Woofer 94 cm², Tweeter 7 cm² |
| Overall Outside Diameter | 146 mm |
| Overall Depth | 89.3 mm |
| Baffle Cutout Diameter | 126 mm |
| Bolt Circle Diameter | 137 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 5.0 |
