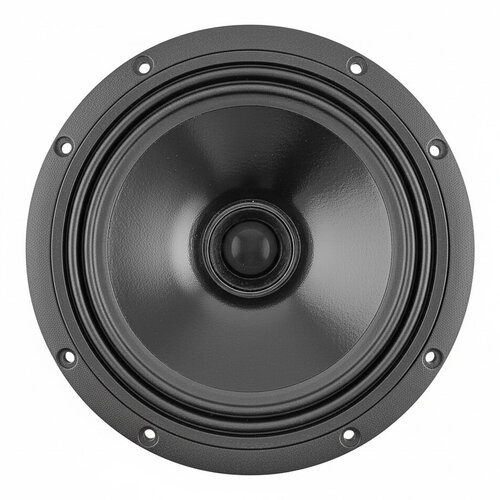

SICA 6,5 C 1,5 CP 6.5″ Coaxial woofer

Highlights of the SICA 6,5 C 1,5 CP – 8

• 6.5″ coaxial design with separate 8 ohm LF and 8 ohm HF sections
• 120 W AES rated power and 240 W continuous program power handling
• 91.0 dB LF sensitivity and 93.9 dB HF sensitivity at 1W/1m
• 55 Hz to 18,000 Hz frequency range
• Paper LF cone with rubber surround and treated silk HF dome
• Aluminium die-cast basket with ferrite LF and neodymium HF magnet circuits

Product details SICA 6,5 C 1,5 CP

SICA 6,5 C 1,5 CP 6.5″ Coaxial Woofer 8+8 Ohm

The SICA 6,5 C 1,5 CP is a compact coaxial driver intended for HiFi and studio monitor speakers. Its LF section uses a paper cone, rubber surround with Double Asymmetric Rolls Technology and a ferrite magnet circuit, while the HF section is built around a treated silk dome tweeter with a neodymium magnet circuit.

With a frequency range of 55 Hz to 18,000 Hz, this coaxial woofer covers a wide bandwidth from a single mounting position. The LF unit is specified at 91.0 dB sensitivity, while the HF unit reaches 93.9 dB, giving the driver a strong basis for efficient two-way coaxial speaker designs.

The dual 8 ohm construction keeps the LF and HF sections electrically separate for use with an appropriate two-way crossover. The HF section has a recommended minimum crossover frequency of 3.0 kHz with a 12 dB/oct or higher high-pass filter. A dedicated 2-way crossover option for this driver uses a 2.5 kHz crossover frequency with 18 dB/oct high-pass and 12 dB/oct low-pass slopes.

Installation is straightforward thanks to the aluminium die-cast basket, 143 mm baffle cutout, 79.5 mm total depth and 1.7 kg net weight. For vented cabinet designs, SICA suggests a 17 liter internal volume tuned to 50 Hz, making this driver suitable for compact monitor-style loudspeaker projects.
