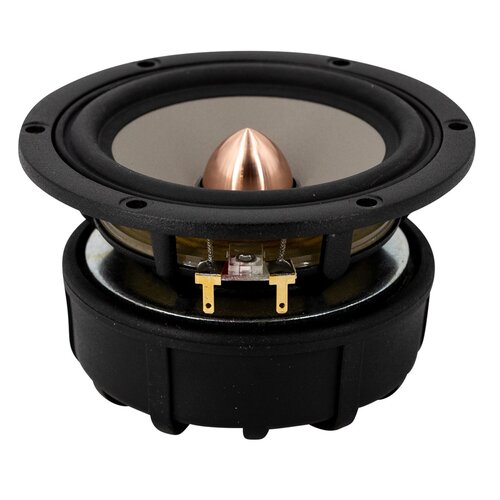

SEAS Excel W12CY/001 – E0021-08S 4.5″ Magnesium Cone Woofer
€399.95
Seas Excel W12CY/001 – E0021-08S 4.5″ Magnesium Cone Woofer
15 in stock
Highlights
- Long term power handling (RMS) is 70 Watts
- Reduced non linear and modulation distortion
- Extra large magnet system for good sensitivity and transient response
Product details
The W12CY001 is a 12cm (4,5’’) cone driver developed for use as a high fidelity woofer/midrange unit. The extremely stiff, yet light cone gives tremendous bass precision and midrange detail. Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances.
Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. An extra large magnet system for good sensitivity and transient response. Copper plating of the top and bottom plates and a solid copper phase plug, which enhance the performance of the copper rings and improve heat conduction away from the pole piece.
Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.
Specifications
| Article number | W12CY001 |
| EAN | 0696277270118 |
| Woofer Series | SEAS Excel Series |
| Woofer Type | Midwoofer |
| Nominal Diameter | 5 " | 146 mm |
| Power Handling (RMS) | 100 W |
| Power Handling (max) | 250 W |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Frequency Response | 40 – 2500 Hz |
| Voice Coil Diameter | 39 mm |
| Magnet Weight | 0.64 kg |
| DC Resistance (Re) | 6.1 Ω |
| Voice Coil Inductance (Le) | 0.65 mH |
| Resonant Frequency (Fs) | 34 Hz |
| Mechanical Q (Qms) | 1.8 |
| Electromagnetic Q (Qes) | 0.30 |
| Total Q (Qts) | 0.26 |
| Diaphragm Mass Inc. Airload (Mms) | 15.5 g |
| Moving Mass Of Diaphragm (Mmd) | 7.5g |
| Mechanical Compliance of Suspension (Cms) | 1.4 mm/N |
| Surface Area of Cone (Sd) | 126 cm² |
| BL Product (BL) | 8.4 N/A |
| Compliance Equivalent Volume (Vas) | 30 L |
| Maximum Linear Excursion (Xmax) | 5 mm |
| Driver's Mechanical Losses (Rms) | 1.94 Ns/m |
| Cone / Diaphragm Material | Magnesium |
| Surround Material | Rubber |
| Basket / Frame Material | Injection moulded metal |
| Overall Outside Diameter | 176 mm |
| Overall Depth | 81.0 mm |
| Baffle Cutout Diameter | 142 mm |
| Bolt Circle Diameter | 166 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 5.0 mm |
