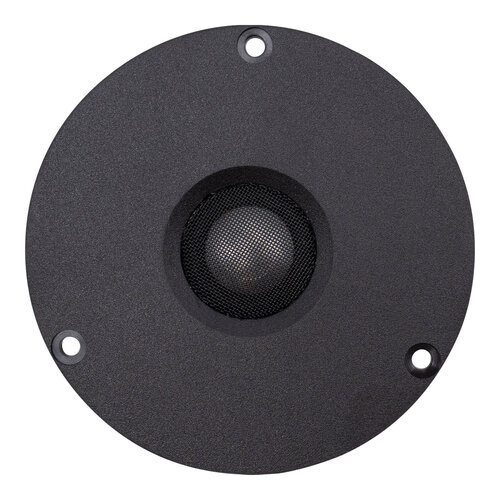

SEAS Prestige 19TAFD/G – H0532-8 Dome Tweeter
€69.95
19mm High Fidelity dome tweeter with smooth, extended frequency response. Aluminum diaphragm suspended by a specially designed soft Sonotex surround which allows a low fundamental frequency.
Available on backorder
Description
Highlights
- Smooth, extended frequency response.
- Specially designed soft Sonotex surround which allows a low fundamental frequency (4,000 to 20,000 Hz)
- 90 Watts RMS Power Handling
- 88 dB 2.83V/1m Sensitivity
Product details
Seas Prestige 19TAFD/G – H0532-8 3/4″ Aluminum Dome Tweeter
Double magnet reduces stray fi elds around the magnet system and allows the unit to be used in close proximity to a CRT. The double magnet also gives a higher sensitivity. Fine mesh grid protects the diaphragm and carries a phase plate which compensates for a slight axial roll off towards 20 kHz.
Voice coil windings immersed in magnetic fl uid increase short term power handling capacity and reduce the compression at high power levels.
Specifications
| Article number | 19TAFD/G |
| EAN | 0696277269709 |
| Tweeter Type | Dome tweeter |
| Tweeter Series | Prestige |
| Cone / Dome Diameter | 19.5 mm | 3/4" |
| Power Handling (RMS) | 90 W |
| Power Handling (max) | 220 W |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Frequency Response | 4000-20000 Hz |
| Resonant Frequency (Fs) | 1700 Hz |
| DC Resistance (Re) | 6.2 Ω |
| Voice Coil Inductance (Le) | 0.05 mH |
| Overall Outside Diameter | 93.8 mm |
| Cutout Diameter | 66.5 mm |
| Depth | 28.0 mm |
| Diaphragm Material | Aluminium |
| plus | Smooth, extended frequency response |
| Article number | 19TAFD/G |
| EAN | 0696277269709 |
Additional information
| Tweeter Type | Dome tweeter |
|---|---|
| Tweeter Series | Prestige |
| Cone / Dome Diameter | 19.5 mm | 3/4″ |
| Power Handling (RMS) | 90 W |
| Power Handling (max) | 220 W |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Frequency response | 4000-20000 Hz |
| Resonant Frequency (Fs) | 1700 Hz |
| DC Resistance (Re) | 6.2 Ω |
| Voice Coil Inductance (Le) | 0.05 mH |
| Overall Outside Diameter | 93.8 mm |
| Cutout Diameter | 66.5 mm |
| Depth | 28.0 mm |
| Diaphragm Material | Aluminium |
