SICA 8 H 2 CP – 8 8″ Bass-mid woofer

Highlights of the SICA 8 H 2 CP 8

• 2-inch voice coil with Kapton former for high power handling and thermal stability
• Balanced ferrite magnet circuit with copper demodulating ring for low distortion
• Progressive wave spider and surface damping cone treatment for precise control
• Ventilated magnet system minimizes power compression for consistent output

Product details SICA 8 H 2 CP 8

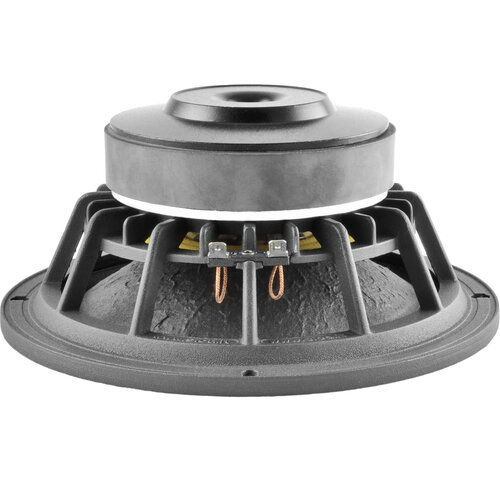

SICA 8 H 2 CP 8 8” Woofer 8 Ohm

This 8-inch woofer is engineered to deliver accurate and powerful bass, featuring a 2-inch copper voice coil wound on a Kapton former for superior heat dissipation and reliability. The aluminium die-cast basket provides a rigid and stable frame, reducing unwanted resonances and ensuring precise cone movement even at high output levels. The use of a ferrite magnet combined with a copper demodulating ring significantly reduces distortion, ensuring clean and natural sound reproduction.

With a rated AES power handling of 200 W and the ability to handle up to 400 W of continuous program power, the SICA 8 H 2 CP 8 stands out for its robustness in demanding audio setups. Its sensitivity of 88.8 dB at 1W/1m and a frequency response from 35 Hz to 3000 Hz make it ideal for applications in speakers and woofers where accurate low-frequency reproduction is essential. The progressive wave spider and rubber surround enhance linearity and control, resulting in tight and well-defined bass response across its operating range.

The ventilated magnet design is a critical feature for minimizing power compression during extended listening sessions or high-SPL use. This ensures that the driver maintains consistent output and sound quality, even under heavy load. The surface damping treatment on the paper cone helps suppress unwanted vibrations and coloration, contributing to a smooth, accurate mid and low-frequency performance. These features make the SICA 8 H 2 CP 8 suitable for use in both professional and high-end DIY monitor systems.

Ideal for integration into custom home audio or studio monitor designs, this woofer is compatible with a wide range of amplifier modules and speaker cabinets. Its Thiele & Small parameters and mounting dimensions support versatile box designs, allowing precise tuning for sealed or vented enclosures. Whether you are upgrading an existing system or building from scratch, the SICA 8 H 2 CP 8 provides the performance and reliability needed for outstanding audio results.
