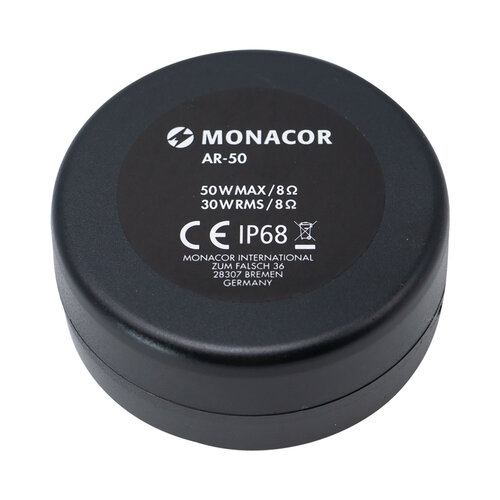

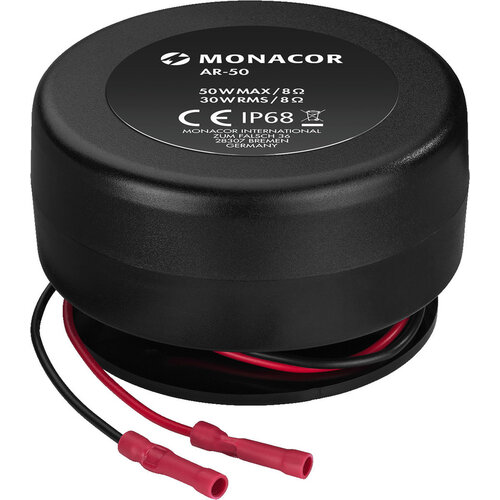

Monacor AR-50 Weatherproof sound exciter
€49.95
Monacor AR-50 exciter
12 in stock
SKU:
AR-50
Categories: Audio components, Exciters
Description
Highlights
- Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
- Very robust and weatherproof version, thus suitable for outdoor applications and in an extra dirty environment
- Suitable for home and outdoor PA applications, e.g. on doors, cupboards, shelves and on boats
- Waterproof (IP68)

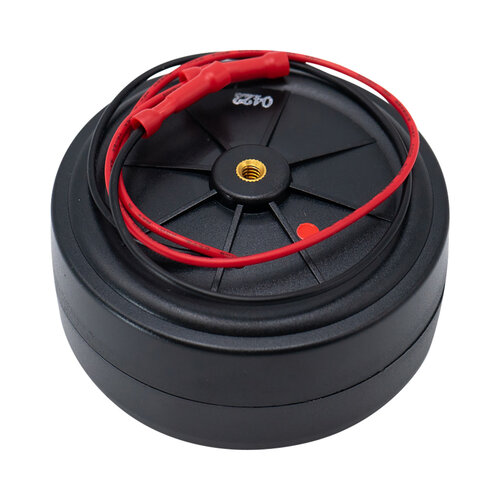

- Supplied with screwable mounting plate
Product details
Weatherproof and Robust Exciters for music and voice reproductions via surfaces capable of vibrating. These resonators are simply screwed onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces already create a partly impressive sound in the entire surrounding area. These resonators are not suitable for use on glass surfaces!
A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.
Specifications
| Article number | AR-50 |
| EAN | 4007754220667 |
| Type | Full-Range |
| Power Handling (RMS) | 30 Watts |
| Power Handling (max) | 50 watts |
| Impedance | 8 ohms |
| Frequency Response | dep. on the installation |
| Resonant Frequency (Fs) | 500 Hz |
| DC Resistance (Re) | – |
| Voice Coil Inductance (Le) | – |
| Total Q (Qts) | – |
| Diaphragm Mass Inc. Airload (Mms) | – |
| Mechanical Compliance of Suspension (Cms) | – |
| BL Product (BL) | – |
| Voice Coil Diameter | – |
| Overall Outside Diameter | 90 mm Ø |
| Overall Depth | – |
| Overall Dimensions (L x W x H) | Ø 90 mm x 55 mm |
| Mounting surface dimensions | – |
| # Mounting Holes | 6 |
| Mounting type | Screw connection / screwable mounting plate |
| Weight | 0.975 kg |
| Article number | AR-50 |
| EAN | 4007754220667 |
Additional information
| Power Handling (RMS) | 30 Watts |
|---|---|
| Power Handling (max) | 50 Watts |
| Impedance | 8 ohms |
| Frequency response | dep. on the installation |
| Resonant Frequency (Fs) | 500 Hz |
| Overall Outside Diameter | 90 mm Ø |
| Overall Dimensions (L x W x H) | Ø 90 mm x 55 mm |
| # Mounting Holes | 6 |
| Mounting type | Screw connection / screwable mounting plate |
| Weight | 0.975 kg |
