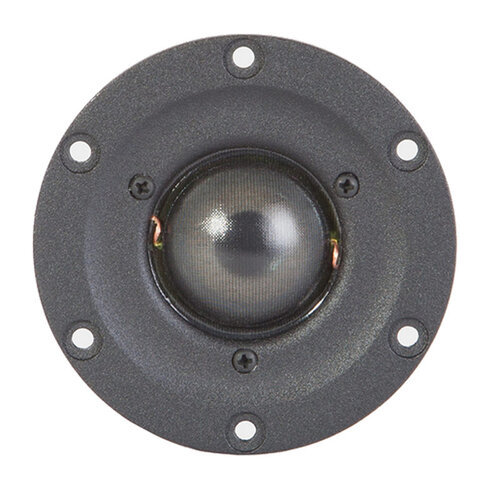

Morel Elite ET 448 Dome Tweeter
€169.95
The Morel ET448 Elite tweeter is based on the famous Morel MDT 44 compact soft dome tweeter and its unique qualities. Featuring IDR™ (Improved Dispersion Recess), improved magnets and aluminum faceplates. Small faceplate for close placement to woofer or midrange for improved sound integration.
6 in stock
Highlights
- IDR™ (Improved Dispersion Recess)
- Large Hexatech™ aluminum voice coil
- Double neodymium magnet system
- High power handling
- Ferrofluid cooled
Product details
Morel Elite ET 448 1″ Dome Tweeter
The Morel ET448 Elite tweeter is based on the famous Morel MDT 44 compact soft dome tweeter and its unique qualities. The new IDR™ (Improved Dispersion Recess) technology and an aluminum faceplate with a new refined texture offers extraordinary acoustical characteristics and exceptional quality finish. Small faceplate allows very close placement to woofer or midrange for improved sound integration. Fully shielded for A/V use.
Specifications
| Article number | ET448 |
| EAN | 0844632065965 |
| Tweeter Type | Soft Dome |
| Tweeter Series | Elite Series |
| Cone / Dome Diameter | 25 mm | 1" |
| Power Handling (RMS) | 120 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 92 dB |
| Frequency Response | 2,200 to 20,000 Hz |
| Resonant Frequency (Fs) | 750 Hz |
| DC Resistance (Re) | 5.2 ohms |
| Voice Coil Inductance (Le) | 0.05 mH |
| Overall Outside Diameter | 2.835" |
| Cutout Diameter | 1.75" |
| Depth | 2.25" |
| Article number | ET448 |
| EAN | 0844632065965 |
| Tweeter Type | Soft Dome |
|---|---|
| Tweeter Series | Elite Series |
| Cone / Dome Diameter | 25 mm | 1″ |
| Power Handling (RMS) | 120 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 92 dB |
| Frequency response | 2,200 to 20,000 Hz |
| Resonant Frequency (Fs) | 750 Hz |
| DC Resistance (Re) | 5.2 ohms |
| Voice Coil Inductance (Le) | 0.05 mH |
| Overall Outside Diameter | 2.835″ |
| Cutout Diameter | 1.75″ |
| Depth | 2.25″ |
