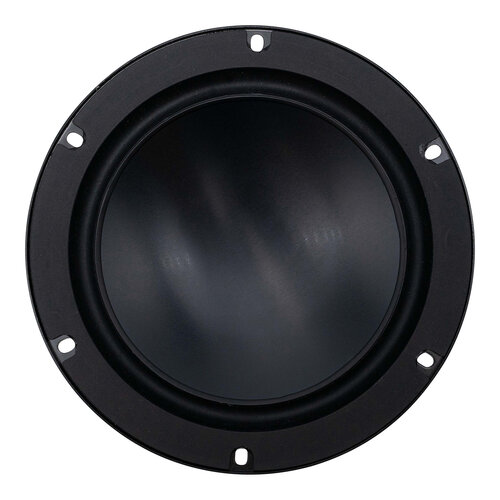

Peerless by Tymphany SBS-160F35AL01-04 6-1/2″ Aluminum Cone Woofer 4 Ohm
€59.95
The SBS-160F35AL01-04 is a 6.5-inch 4-ohm woofer that is a member of the new SBS product family from Peerless by Tymphany. It features a black anodized aluminum cone, inverted rubber surround, ferrite magnet, and steel basket. It is designed for high excursion applications.
30 in stock
Highlights
- 6.1 Ohms Woofer Speaker
- Power rating of 150 W – 300 W max
- Frequency range of 40 Hz ~ 500 Hz
- Top round shape
Product details
Peerless by Tymphany SBS-160F35AL01-04 Woofer
The woofer has a resonant frequency of 46.15 Hz, a sensitivity of 82.36 dB, and a maximum linear excursion of 8.5 mm. It has a power handling capacity of 150 watts RMS and 300 watts peak. This woofer is designed for high excursion applications, and can be used in a variety of speaker systems, including home audio, car audio, and professional audio. It is a good choice for applications where a high level of bass output is required.
This woofer is designed for high excursion applications, and can be used in a variety of speaker systems, including home audio, car audio, and professional audio. It is a good choice for applications where a high level of bass output is required. If you are looking for a high-performance woofer for your speaker system, the SBS-160F35AL01-04 is a good option to consider. It is a well-designed and versatile woofer that can be used in a variety of applications.
Specifications
| Article number | SBS-160F35AL01-04 |
| EAN | 0848864045559 |
| Woofer Series | Peerless by Tymphany SBS series |
| Woofer Type | Woofer |
| Nominal Diameter | 165 mm (6.5 Inch) |
| Power Handling (RMS) | 150 watt |
| Power Handling (max) | 300 Watt |
| Impedance (Z) | 4 Ohm |
| Sensitivity (SPL at 1m / 2.83V) | 80.7 dB |
| Frequency Response | 40-500 Hz |
| Voice Coil Diameter | 36 mm |
| DC Resistance (Re) | 4.1 Ohm |
| Voice Coil Inductance (Le) | 1.91 mH |
| Resonant Frequency (Fs) | 46.15 Hz |
| Mechanical Q (Qms) | 5.84 |
| Electromagnetic Q (Qes) | 0.69 |
| Total Q (Qts) | 0.62 |
| Diaphragm Mass Inc. Airload (Mms) | 58.2 g |
| Moving Mass Of Diaphragm (Mmd) | 57.2 g |
| Mechanical Compliance of Suspension (Cms) | 180 um/N |
| Surface Area of Cone (Sd) | 123 cm2 |
| BL Product (BL) | 10.3 N/A |
| Compliance Equivalent Volume (Vas) | 3.91 L |
| Maximum Linear Excursion (Xmax) | 10.5 mm |
| Driver's Mechanical Losses (Rms) | 3.07 N-s/m |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 168 mm (6.614 Inch) |
| Overall Depth | 93.7 mm |
| Baffle Cutout Diameter | 140 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 4.5 mm |
| Article number | SBS-160F35AL01-04 |
| EAN | 0848864045559 |
| Woofer Series | Peerless by Tymphany SBS series |
|---|---|
| Woofer Type | Woofer |
| Nominal Diameter | 165 mm (6.5 Inch) |
| Power Handling (RMS) | 150 Watt |
| Power Handling (max) | 300 Watt |
| Impedance (Z) | 4 Ohm |
| Sensitivity (SPL at 1m / 2.83V) | 80.7 dB |
| Frequency response | 40-500 Hz |
| Voice Coil Diameter | 36 mm |
| DC Resistance (Re) | 4.1 Ohm |
| Voice Coil Inductance (Le) | 1.91 mH |
| Resonant Frequency (Fs) | 46.15 Hz |
| Mechanical Q (Qms) | 5.84 |
| Electromagnetic Q (Qes) | 0.69 |
| Total Q (Qts) | 0.62 |
| Diaphragm Mass Inc. Airload (Mms) | 58.2 g |
| Moving Mass Of Diaphragm (Mmd) | 57.2 g |
| Mechanical Compliance of Suspension (Cms) | 180 um/N |
| Surface Area of Cone (Sd) | 123 cm² |
| BL Product (BL) | 10.3 N/A |
| Compliance Equivalent Volume (Vas) | 3.91 L |
| Maximum Linear Excursion (Xmax) | 10.5 mm |
| Driver's Mechanical Losses (Rms) | 3.07 N-s/m |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 168 mm (6.614 Inch) |
| Overall Depth | 93.7 mm |
| Baffle Cutout Diameter | 140 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | 4.5 mm |
