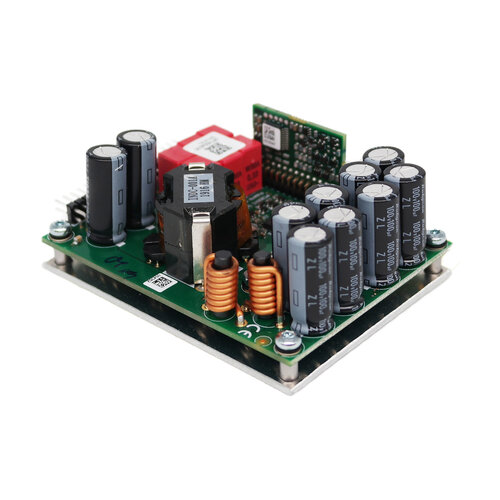

PURIFI 1ET400A 1x425W Eigentakt Amplifier Module
€329.95
The 1ET400A is a single-channel, ultra-high performance, analog-input Class D amplifier module capable of over 400W of power and provides an audio quality level that sets the standard for power amplifiers of any operating class.
4 in stock
Highlights
- Single-channel, analog input
- Negligible THD and IMD
- Extraordinary low noise
- Load-invariant response
- Exceptionally clean clipping
- Low losses & high efficiency
- Small formfactor
Product details
PURIFI 1ET400A | Eigentakt | Amplifier Module
This high-performance amplifier module is based on the Eigentakt technology from PURIFI. The 1ET400A is one of the most high-end options from our amplifier module category. Eigentakt is the implementation of PURIFI’s continuing research into nonlinear control theory that produced the first mathematically exact largesignal model of self-oscillating amplifier controllers. This breakthrough allows complete optimization of the feedback circuit and improves performance by at least an order of magnitude over existing implementations. The Eigentakt technology allows for extreme low THD at any frequency and power level. The negligible IMD (intermodulation distortion) creates a highly resolved and stable stereo image. Thanks to the very low output noise, this exceptional performance is preserved even at low listening levels.
The 1ET400A also features a comprehensive protection system that makes it robust and easy to integrate.
Features
- High loop gain (>75dB) in the entire audio band
- Negligible Intermodulation Distortion (IMD)
- THD remains extremely low at any frequency and any power level
- Negligible output noise
- High power supply rejection ratio (PSRR)
- Controlled, second-order low-pass response
Specifications
| Article number | 1ET400A |
| EAN | 0691046950017 |
| Rated power output | <p/>425 watts at 4 ohms </br> 227 watts at 8 ohms </br> 450 watts at 2 ohms</p> |
| Minimum load | 2 ohms |
| Efficiency | > 94% |
| Signal-to-noise ratio (SNR) | 131 dB |
| Distortion | 0.00017 % THD+N at 20-20,000 Hz, 4 ohms, 100 watts |
| Frequency response | 0 – 60,000 Hz |
| Gain | 12.8 dB |
| Input sensitivity | – |
| Input impedance | <P/>4.4k ohms (differential mode) </br> 2.2k ohms (common mode)</p> |
| Amplifier Classification | Class D |
| Circuit Topology | Eigentakt |
| Speaker output channels | 1 |
| Input connection type | Pin header |
| Speaker output connection type | Pin header |
| DSP function | – |
| Bluetooth | – |
| EQ Adjustment | – |
| Power Requirements | 25 – 70 VDC (symmetric supply +/-) |
| Power inlet connector | Pin header |
| Current limit | 25 A |
| Under/over voltage protection | check |
| Dimensions (L x W x H) | 82 x 63 x 35 mm |
| Mounting hole spacing | 75 x 56 mm |
| Mounting hole diameter | M3 |
| Article number | 1ET400A |
| EAN | 0691046950017 |
| Rated power output | 425 watts at 4 ohms 227 watts at 8 ohms 450 watts at 2 ohms |
|---|---|
| Minimum load | 2 ohms |
| Efficiency | > 94% |
| Signal-to-noise ratio (SNR) | 131 dB |
| Distortion | 0.00017 % THD+N at 20-20,000 Hz, 4 ohms, 100 watts |
| Frequency response | 0 – 60,000 Hz |
| Gain | 12.8 dB |
| Input impedance | 4.4k ohms (differential mode) 2.2k ohms (common mode) |
| Amplifier classification | Class-D |
| Circuit Topology | Eigentakt |
| Speaker output channels | 1 |
| Input connection type | Pin header |
| Speaker output connection type | Pin header |
| Power Requirements | 25 – 70 VDC (symmetric supply +/-) |
| Power inlet connector | Pin header |
| Current limit | 25 A |
| Under/over voltage protection | check |
| Dimensions (L x W x H) | 82 x 63 x 35 mm |
| Mounting hole spacing | 75 x 56 mm |
| Mounting Hole Diameter | M3 |
