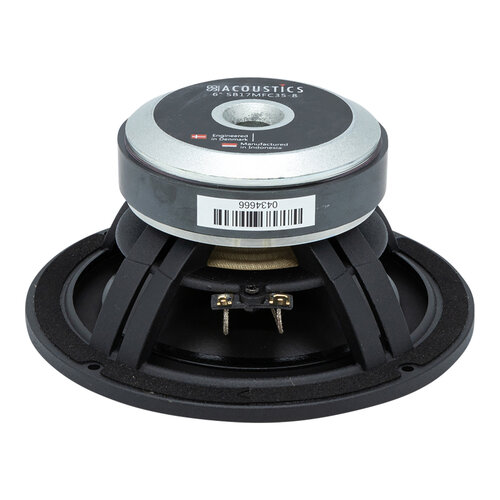

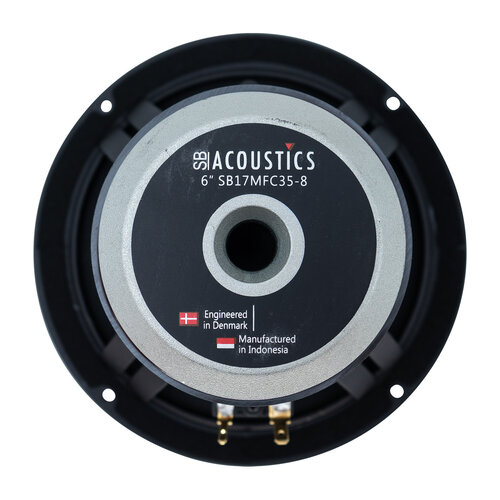

SB Acoustics SB17MFC35-8 6″ Poly Cone Woofer 8 ohm
€72.95
SB Acoustics SB17MFC35-8 6″ Poly Cone Woofer
16 in stock
Description
Highlights
- Vented cast aluminum chassis for optimum strength and low compression
- Mineral filled PP-cone made in-house
- Soft low damping rubber surround for improved transient response
- Non-conducting fibre glass voice coil former for minimum damping
- Extended copper sleeve on pole piece for low inductance and low distortion
- CCAW voice coil for reduced moving mass
- Long life silver lead wires
- Vented pole piece for reduced compression
Product details
In-house made mineral filled PP-cone. Low damping rubber surround for improved transient response. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting copper cap on pole piece. Non-inductive 35.5mm coil former.
Specifications
| Article number | SB17MFC35-8 |
| EAN | 0691046947468 |
| Woofer Series | SB Acoustics MFC Polypropylene series |
| Woofer Type | Midwoofer |
| Nominal Diameter | 6" |
| Power Handling (RMS) | 60 Watts |
| Impedance (Z) | 8 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Voice Coil Diameter | 35.5 mm |
| Magnet Weight | 0.54 kg |
| DC Resistance (Re) | 5.7 ohms |
| Voice Coil Inductance (Le) | 0.15 mH |
| Resonant Frequency (Fs) | 33 Hz |
| Mechanical Q (Qms) | 4.9 |
| Electromagnetic Q (Qes) | 0.40 |
| Total Q (Qts) | 0.37 |
| Diaphragm Mass Inc. Airload (Mms) | 11.8g |
| Mechanical Compliance of Suspension (Cms) | 1.97 mm/N |
| Surface Area of Cone (Sd) | 118 cm2 |
| BL Product (BL) | 5.9 Tm |
| Compliance Equivalent Volume (Vas) | 39 liters |
| Maximum Linear Excursion (Xmax) | 5.5 mm |
| Driver's Mechanical Losses (Rms) | 0.5 kg/s |
| Cone / Diaphragm Material | Polypropylene |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper-clad aluminum |
| Voice Coil Former | Fiberglass |
| Basket / Frame Material | Cast aluminum |
| Overall Outside Diameter | 171 mm |
| Overall Depth | 86 mm |
| Baffle Cutout Diameter | 146 mm |
| Bolt Circle Diameter | 159 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 4.3 mm |
| Article number | SB17MFC35-8 |
| EAN | 0691046947468 |
Additional information
| Woofer Series | SB Acoustics MFC Polypropylene series |
|---|---|
| Woofer Type | Midwoofer |
| Nominal Diameter | 6″ |
| Power Handling (RMS) | 60 Watts |
| Impedance (Z) | 8 ohms |
| Sensitivity (SPL at 1m / 2.83V) | 88 dB |
| Voice Coil Diameter | 35.5 mm |
| Magnet Weight | 0.54 kg |
| DC Resistance (Re) | 5.7 ohms |
| Voice Coil Inductance (Le) | 0.15 mH |
| Resonant Frequency (Fs) | 33 Hz |
| Mechanical Q (Qms) | 4.9 |
| Electromagnetic Q (Qes) | 0.40 |
| Total Q (Qts) | 0.37 |
| Diaphragm Mass Inc. Airload (Mms) | 11.8g |
| Mechanical Compliance of Suspension (Cms) | 1.97 mm/N |
| Surface Area of Cone (Sd) | 118 cm2 |
| BL Product (BL) | 5.9 Tm |
| Compliance Equivalent Volume (Vas) | 39 liters |
| Maximum Linear Excursion (Xmax) | 5.5 mm |
| Driver's Mechanical Losses (Rms) | 0.5 kg/s |
| Cone / Diaphragm Material | Polypropylene |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper-clad aluminum |
| Voice Coil Former | Fiberglass |
| Basket / Frame Material | Cast Aluminum |
| Overall Outside Diameter | 171 mm |
| Overall Depth | 86 mm |
| Baffle Cutout Diameter | 146 mm |
| Bolt Circle Diameter | 159 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 4.3 mm |
