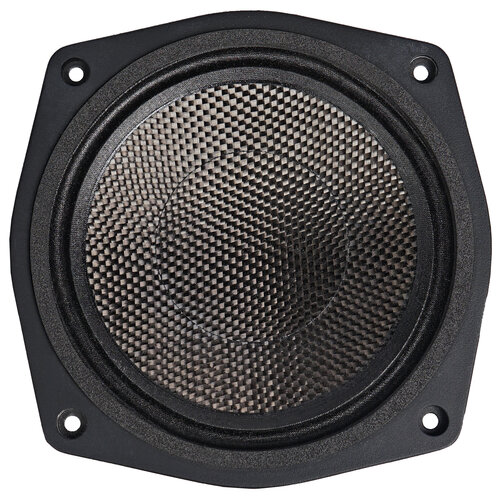

SB Audience NERO-5CCN125D Mid-range Woofer
€169.95
High-efficiency 5-inch midrange driver built for demanding audio environments. The NERO-5CCN125D delivers outstanding clarity and low distortion, making it ideal for high-compression midrange applications in both professional and high-end DIY setups.
Available on backorder
Highlights of the NERO NERO-5CCN125D
- 99 dB sensitivity with wide frequency response (355 – 20,000 Hz)
- Robust 125W AES power handling, 250W max power
- Neodymium magnet and copper sleeve for reduced distortion
- Removable rear chamber with die-cast aluminum basket
Product details NERO NERO-5CCN125D
NERO NERO-5CCN125D 5” Midrange Loudspeaker
The NERO-5CCN125D is a 5-inch high-efficiency midrange driver engineered for precision and low distortion in professional sound systems and advanced DIY loudspeaker projects. With a powerful neodymium magnet and copper sleeve demodulation ring, it maintains low inductance and minimizes intermodulation distortion. Its pure carbon fiber cone and inverted low-mass surround deliver exceptional midrange clarity. This driver handles 125W AES and up to 250W peak power while achieving up to 99 dB sensitivity (with chamber) at 2.83V/1m.
The robust cast aluminum chassis supports a removable rear chamber, enhancing its flexibility for varied cabinet designs. It incorporates a 38.5 mm voice coil wound with copper-clad aluminum on a fiberglass former, allowing it to perform reliably under high thermal loads. Key technical parameters include a resonant frequency (Fs) of 122 Hz (without chamber), Xmax of 3.2 mm, and a net air volume displacement of 0.59 liters. Its optimized Thiele-Small parameters make it suitable for high-efficiency midrange horn or sealed applications where space and sound pressure level are critical.
Specifications
| Article number | NERO-5CCN125D |
| EAN | 9502219616931 |
| Woofer Type | Mid Range Woofer |
| Nominal Diameter | 5” |
| Power Handling (RMS) | 125 Watts |
| Power Handling (max) | 250 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | Chamber 99 dB. no chamber 97 dB |
| Frequency Response | 355 – 20.000 Hz |
| Voice Coil Diameter | 38.5 mm |
| DC Resistance (Re) | 5.4 Ω |
| Voice Coil Inductance (Le) | Chamber 0.03 mH, No chamber 0.07 mH |
| Resonant Frequency (Fs) | Chamber 360 Hz, No chamber 122 Hz |
| Mechanical Q (Qms) | Chamber 16.6, No chamber 9.61 |
| Electromagnetic Q (Qes) | Chamber 0.76, No chamber 0.28 |
| Total Q (Qts) | Chamber 0.73, No chamber 0.28 |
| Diaphragm Mass Inc. Airload (Mms) | 7.9 g |
| Mechanical Compliance of Suspension (Cms) | Chamber 0.03 mm/N, No chamber 0.22 mm/N |
| Surface Area of Cone (Sd) | 93.3 cm² |
| BL Product (BL) | 10.6 Tm |
| Compliance Equivalent Volume (Vas) | Chamber 0.3 Liters, No chamber 2.70 Liters |
| Maximum Linear Excursion (Xmax) | 3.2 mm |
| Voice Coil Former | Till |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 159 mm |
| Baffle Cutout Diameter | Chamber 125 mm. No chamber 120.3 mm |
| Bolt Circle Diameter | 142 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | 4 mm |
| plus | Removable cast aluminum rear chamber |
