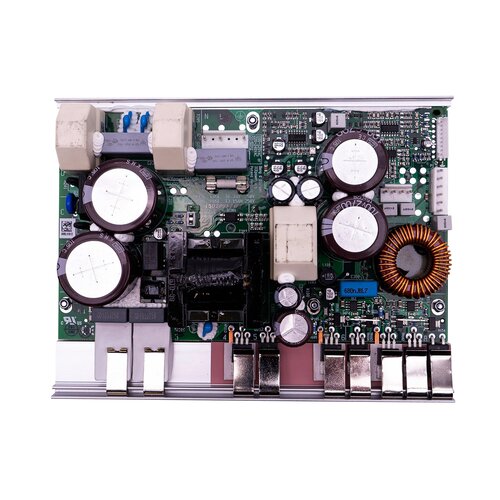

ICEpower 500ASP Amplifier module with integrated power supply

Highlights

• Very rugged construction for professional use
• Amplifier with integrated power supply
• Comprehensive protection scheme
• Suitable for CE approved designs
• Power output for ICEpower 250A and/or 500A
• ±12 volt auxiliary output
• Selectable mains 115/230Vac
• Safety conforms to UL/IEC 60065 and others

Product details

The ICEpower 500ASP is a high-performance and extreme reliable amplifier module with an integrated power supply. The amplifier section is essentially the 500A module and is capable of 500-watts of output power. Designed to withstand the demands of professional (live concert) applications, not only in terms of sound quality but also on ruggedness and reliability. The ASP-series is the self-contained amplification solution from our amplifier modules category, fit for your most demanding applications.

The ICEpower 500ASP offers extreme high fidelity and lots of power from a small footprint, thanks to state-of-the-art ICEpower® analogue technology. True high-end performance is guaranteed by the patented, proprietary COM-modulation and MECC-control techniques. The turn-key design shortens the time to implement amplification in your end product drastically. The connection interface uses industry-standard Molex Micro-Fit and JST PH-series connectors. The power supply of the 500ASP includes a DC hanger bus output, which can be used for powering additional 250A or 500A modules. This makes it very convenient to create 2 and 3 channel amplifiers, combining the 500ASP with the 250A and the 500A.

Need more power? Check out the 1000ASP module.
