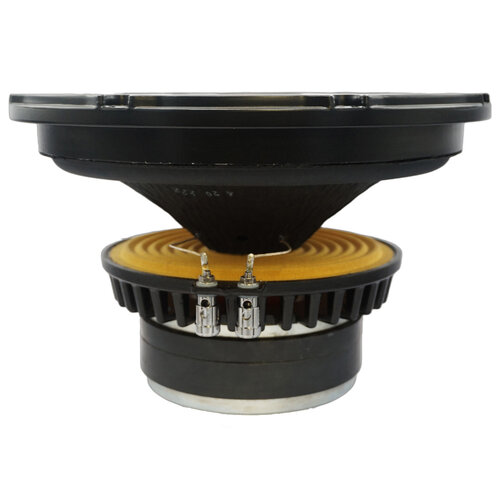

Volt Loudspeakers RV2550 Subwoofer
€519.95
The Volt Loudspeakers RV2550 is a high-performance 10-inch Subwoofer designed for exceptional sub-bass reproduction, making it an ideal choice for studio monitors or high-end sound systems that demand tight, clean bass even under heavy load.
4 in stock
Highlights of the Volt Loudspeakers RV2550
- Symmetrical field magnet with extended center pole for linearity and transient control
- Advanced cooling system with radial chassis and multi-finned magnet intercooler
- Carbon fiber-infused paper cone and low-damping NBR rubber surround for durability
- Low power compression (3 dB) for consistent performance during prolonged operation
Product details Volt Loudspeakers RV2550
Volt Loudspeakers RV2550 Subwoofer
The RV2550 features Volt’s signature Radial Technology, with a vented magnet system that efficiently dissipates heat. This helps keep voice coil and magnet temperatures low, ensuring reliable performance over long periods. The double-stacked ceramic magnet assembly supports significant peak-to-peak travel, enhancing the overall excursion of ±12 mm, and provides a maximum excursion of 36 mm.
With a sensitivity of 89 dB/W/m and a frequency range of 20 Hz to 500 Hz, the RV2550 excels at delivering rich, deep bass tones. Its 2.5-liter volume displacement and 250-watt power handling make it a powerful component in demanding setups. Designed with a 50 mm voice coil and die-cast aluminum chassis, this woofer combines rugged construction with top-tier audio clarity, making it perfect for professional and high-end audiophile applications.
Specifications
| Article number | RV2550 |
| EAN | 9508867322439 |
| Woofer Type | Sub Bass Driver |
| Nominal Diameter | 10 " |
| Power Handling (RMS) | 250 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 89 dB |
| Frequency Response | 20 – 500 Hz |
| Voice Coil Diameter | 50 mm |
| DC Resistance (Re) | 5.9 Ω |
| Voice Coil Inductance (Le) | 1.45 mH |
| Resonant Frequency (Fs) | 28 Hz |
| Mechanical Q (Qms) | 2.58 |
| Electromagnetic Q (Qes) | 0.38 |
| Total Q (Qts) | 0.33 |
| Diaphragm Mass Inc. Airload (Mms) | 69 g |
| Mechanical Compliance of Suspension (Cms) | 0.47 mm/N |
| Surface Area of Cone (Sd) | 330 cm² |
| BL Product (BL) | 13.9 N/A |
| Compliance Equivalent Volume (Vas) | 71.78 Litres |
| Maximum Linear Excursion (Xmax) | 12 mm |
| Driver's Mechanical Losses (Rms) | 4.73 Ωm |
| Basket / Frame Material | Diecast Aluminium |
| Overall Outside Diameter | 270 mm |
| Overall Depth | 175 mm |
| Baffle Cutout Diameter | 241 mm |
| Bolt Circle Diameter | 255 mm |
| # Mounting Holes | 8 |
| Mounting Hole Diameter | 5.2 mm |
| Article number | RV2550 |
| EAN | 9508867322439 |
| Woofer Type | Sub Bass Driver |
|---|---|
| Nominal Diameter | 10 “ |
| Power Handling (RMS) | 250 Watts |
| Impedance (Z) | 8 Ω |
| Sensitivity (SPL at 1m / 2.83V) | 89 dB |
| Frequency response | 20 – 500 Hz |
| Voice Coil Diameter | 50 mm |
| DC Resistance (Re) | 5.9 Ω |
| Voice Coil Inductance (Le) | 1.45 mH |
| Resonant Frequency (Fs) | 28 Hz |
| Mechanical Q (Qms) | 2.58 |
| Electromagnetic Q (Qes) | 0.38 |
| Total Q (Qts) | 0.33 |
| Diaphragm Mass Inc. Airload (Mms) | 69 g |
| Mechanical Compliance of Suspension (Cms) | 0.47 mm/N |
| Surface Area of Cone (Sd) | 330 cm² |
| BL Product (BL) | 13.9 N/A |
| Compliance Equivalent Volume (Vas) | 71.78 Litres |
| Maximum Linear Excursion (Xmax) | 12 mm |
| Driver's Mechanical Losses (Rms) | 4.73 Ωm |
| Basket / Frame Material | Diecast Aluminium |
| Overall Outside Diameter | 270 mm |
| Overall Depth | 175 mm |
| Baffle Cutout Diameter | 241 mm |
| Bolt Circle Diameter | 255 mm |
| # Mounting Holes | 8 |
| Mounting Hole Diameter | 5.2 mm |
